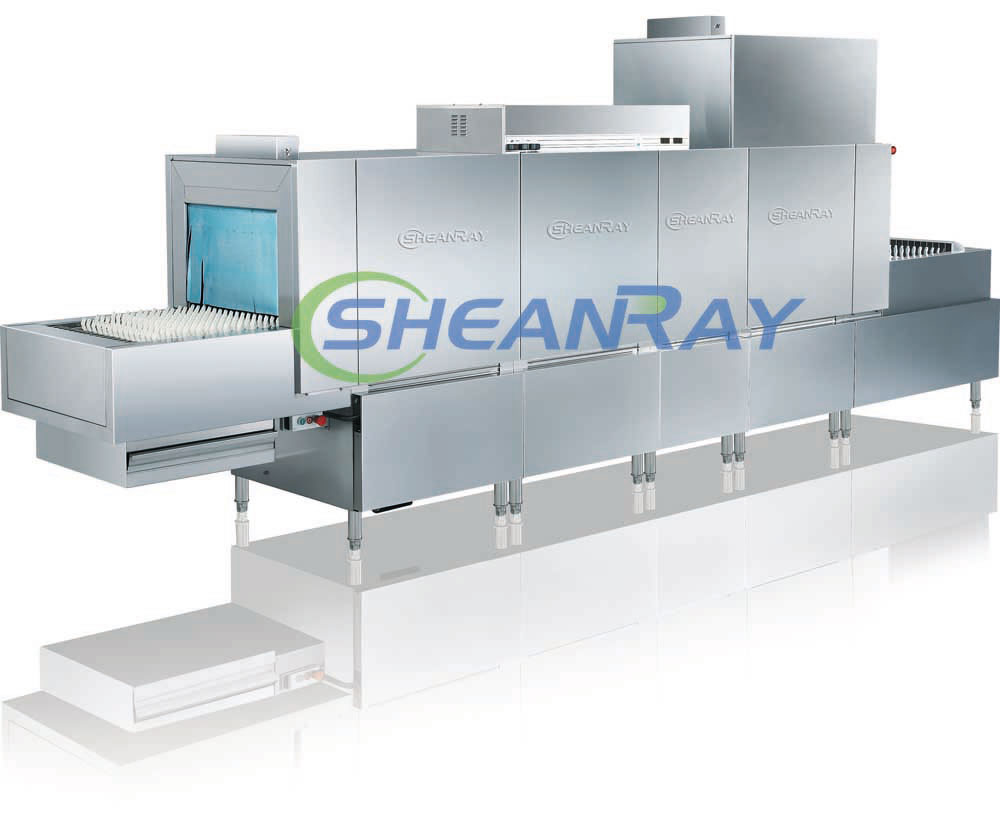

FA SERIES

Characteristics and Advantages

Mechanical button design makes the operation simple.

The washing standpipe has a built-in adjustable throttle slice, which can adjust the water pressure of the washing arm to meet the washing of various tableware.

Double skin structure saves energy and reduces noise to make more comfortable operating environment.

Optional double wash speed could select washing procedure according to the situation of tableware.

Double gear wheel design of conveyor could maximally reduce the wear.

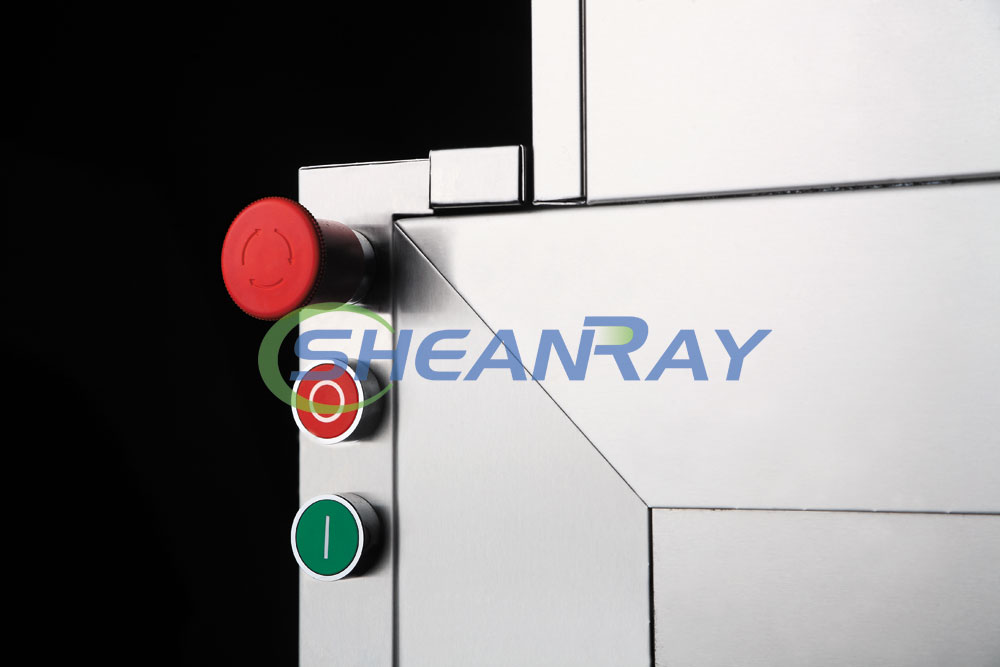

The entrance is equipped with start/stop/emergency stop switches, it is convenient for operation.

The Straightly inserted type washing arm formed by the mold  without the O seal ring, which is more convenient for disassembly and assembly.

Photoelectric induction detection conveyor belt could make the equipment start automatically when the tableware enters the machine, which could save energy and protect environment.

Standard configuration of double rinse system and unique surround rinse design ensure better rinse effect and achieves nearly 20% cost saving.

Optional heat recovery module could further reduce the machine energy consumption.

Optional triple rinse system can meet higher washing requirements.

Installation and  Connection Requirements

Power requirements:380V/50Hz/3Ph+Neutral + Ground，with an external separate air circuit breaker.

Machine can be directly connected to water supply system, the lowest incoming water pressure should be 2Kg/cm².

Ideal For

Banquet hall, factory workers restaurants, aviation food companies, schools, hospitals, tableware disinfection companies and other large food and beverage catering industries.

Parameters

Name/Model                                           FA5100                 FA5100RD              FA6400R                 FA6400RD              FA7700RDP

Heating                                                Electricity/Steam   Electricity/Steam   Electricity/Steam    Electricity/Steam    Electricity/Steam

Appearance dimension(mm)                   3150×914×1635  3950×914×2047  4450×914×1635    5250×914×2047   6500×914×2047

Max capacity(dishes/hour)                        5100                    5100                    6400                     6400                     7700

Total connected load(Kw)                       53/2                     63/2                     70/3                     80/3                      85/7

Water consumption(liter/ hour)               270                      270                      270                       270                       270

Tank heater(Kw)                                    15/--                   15/--                      15×2/--                 15×2/--                  15×2/--

Booster heater(Kw)                                36/--                   36/--                      36/--                      36/--                      36/--

Power of drying tunnel                             --                      10/--                       --                          10/--                      10/--

Pump motor(Kw)                                     1.9                   1.9                         1.9×2                    1.9×2                    1.9×3

Total steam consumption(kg/h)                  --/85                --/100                      --/105                    --/120                   --/120

Cross section  of cable (mm2)                    25/2.5              35/2.5                     35/2.5                    35/2.5                  35/2.5

Rated current of air circuit breaker（A）      125/16             125/40                    125/40                   150/40                 150/40
