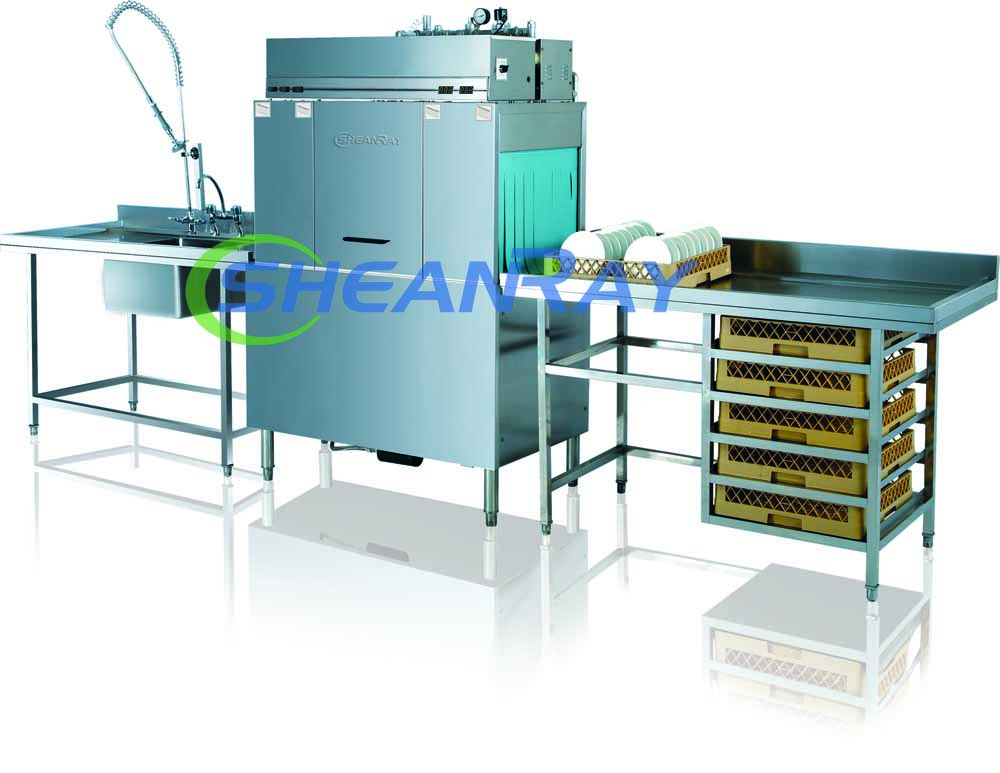

C200

Characteristics and Advantages

Deep-draw moulding integral wash tank has no dead angle of sanitation, and is easy to be cleaned.

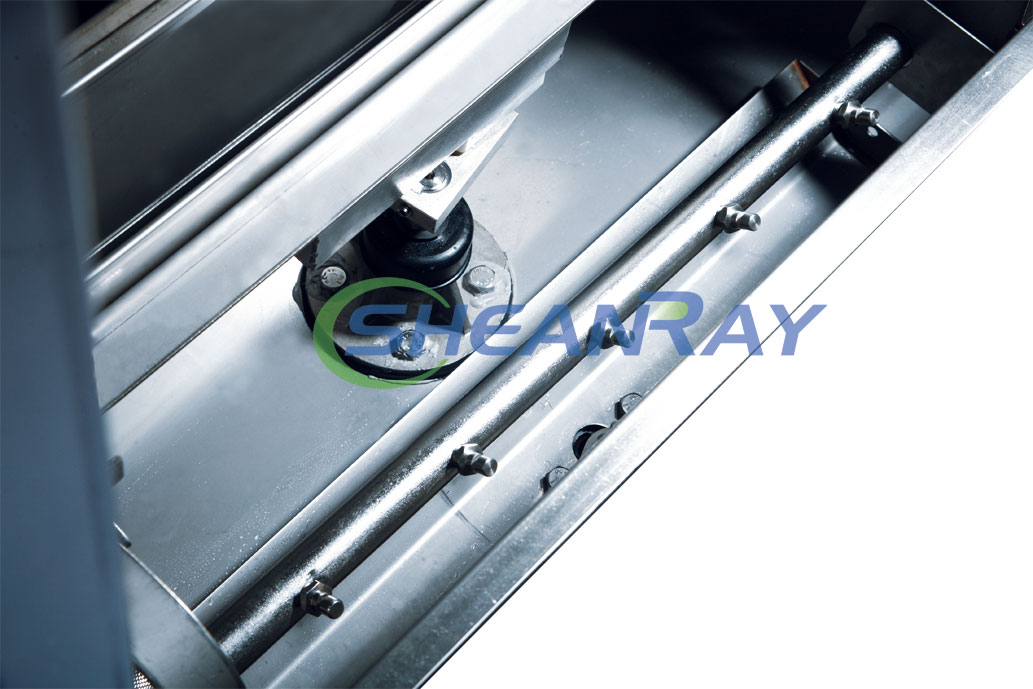

Unique inward curving nozzle improves the contact area of tableware and water flow to ensure no dead angle of spray.

It's convenient to exchange between left entering and right entering, which could be easily completed at the installation site, without replacing any accessories.

Automatic start/stop program reduces water and electricity consumption.

Dual temperature control design of rinsing maintains stable spray temperature.

Anti-dry heating design of wash tank and booster make it safe and reliable.

Optional heat recovery module could further reduce the machine energy consumption.





Installation and  Connection Requirements

Power requirements: 380V/50Hz/3Ph+Neutral + Ground,with an external separate air circuit breaker.

Machine can be directly connected to water supply system, the lowest incoming water pressure should be 2Kg/cm².

If a hood or vent needed, the inlet capacity should be 5.7m³/min and the outlet 11.3 m³/min.



Ideal For

Medium hotels, guest houses, chain –restaurants and dining halls.



Parameters

Item/Model                                                                       C200

Power Requirements                                                     380V/50Hz/3P

Heating                                               Electricity              Electricity            Steam

Incoming water  temperature(℃)           10-60                   40-60                 10-60

Tank heater(Kw)                                  7.5                      7.5                       -

Booster heater(Kw)                              9×4                     9×2                      -

Total steam consumption(kg/h)              -                          -                         75

 Wash Pump (Kw)                                1.9                       1.9                     1.9

Total connected load(Kw)                     46                        28                      2.5

Total Amps required(A)                         70                        43                      4

Cross section  of cable (mm²)                25                        10                      2.5

Rated current of air circuit breaker（A）  100                      63                      16

Appearance dimension(mm)                                    1150×779×1823

Passing width (mm)                                                         508

Max clear entry height(mm)                                              450

Max capacity（rack/hour）                                                200

Water consumption(liter/rack)                                           2

Wash tank capacity(liter)                                                  90

Booster capacity(liter)                                                      20.8

Wash temperature(℃)                                                     60~65

Rinse temperature(℃)                                                      82~90

Diameter of the water inlet hose(in)                                   3/4

Diameter of drainpipe(in)                                                   2

Incoming water pressure(Kg/cm²)                                      2~5

Incoming water hardness(g/l)                                            0.034-0.103
