H60

Characteristics and Advantages

Built-in rinse pump could overcome the fluctuation of water pressure and bring steady rinse effect.

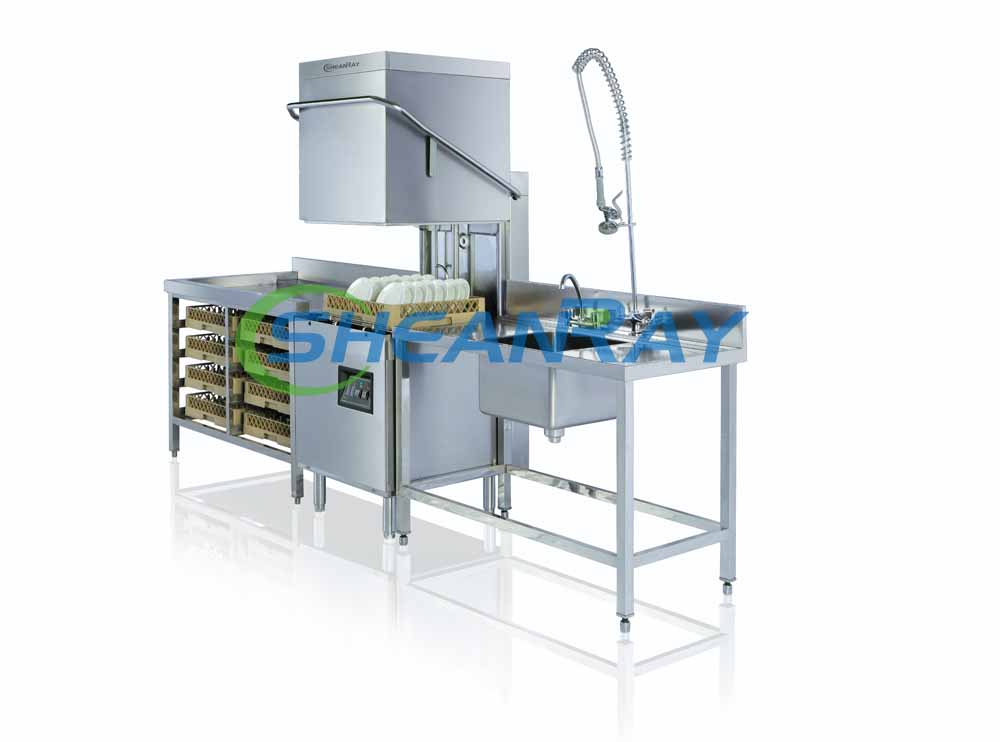

Unique design of cover closed doors could let steam and heat rise and kept inside the door hood instead of being released into dishwashing room when the door hood is lifted.

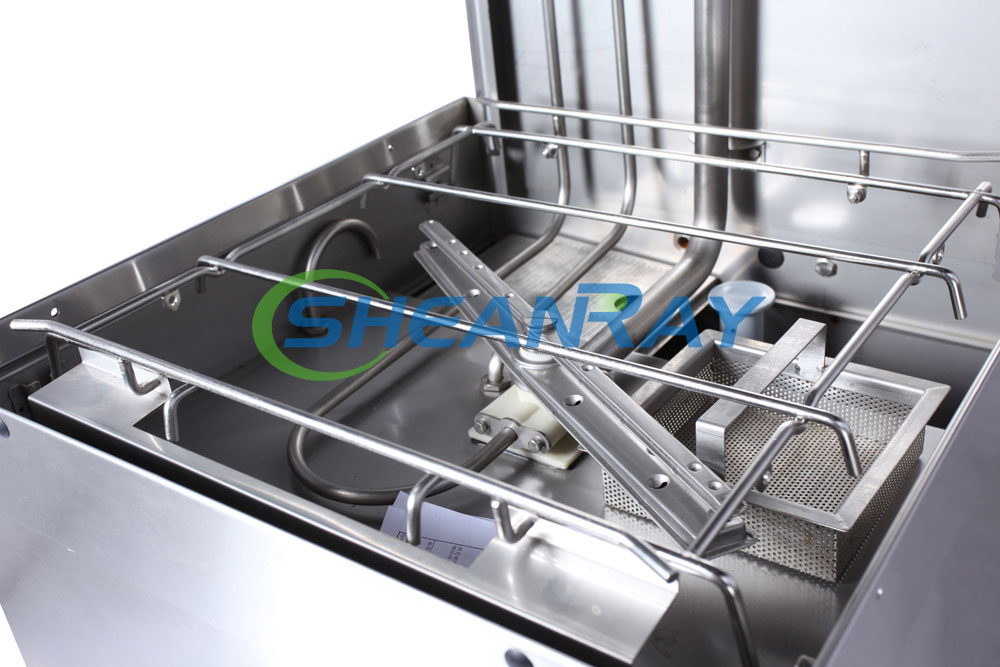

Uniquely designed nozzle makes the water spraying more stable and uniform, which covers a wide range.

Two optional washing cycles could be selected according to the situation of tableware.

Automatic water injection could automatically control water level and prevent dry heating.

Mechanical button design makes the operation simple.

Highlighted LED temperature display makes it clear at a glance.

Optional double skin hood saves energy and reduce noise to make more comfortable operating environment.

Optional heat recovery module further reduces the energy consumption of the machine.



Installation and  Connection Requirements

Power requirements: 380V/50Hz/3Ph+Neutral + Ground, with an external separate air circuit breaker.

Machine can be directly connected with water supply system, the lowest incoming water pressure should be 0.3Kg/cm².

If a hood or vent needed, the minimum capacity should be 2.8 m³/min.



Ideal For

Medium and small hotels, coffee shops, chain –restaurants and dining halls.



Parameters

Item/Model                                        H60                       H60S

Power Requirements                           380V/50Hz/3P         380V/50Hz/3P

Incoming water  temperature(℃)         10-60                     10-60

Tank heater(Kw)                                3                           3

Booster heater(Kw)                             7×2                      7

 Wash Pump (Kw)                               0.735                    0.735

Rinse Pump (Kw)                                0.23                      0.23

Total connected load(Kw)                    18                        11

Total Amps required(A)                        28                        17

Cross section  of cable (mm2)                6                         4

Rated current of air circuit breaker（A）  40                       25

Appearance dimension(mm)                  713×835×1508      836×835×1508

Heating                                                            Electricity

Passing width (mm)                                           508

Max clear entry height(mm)                                420

Max capacity（rack/hour）                                  60

Water consumption(liter/rack)                             2.5

Wash tank capacity(liter)                                    32

Booster capacity(liter)                                        14

Wash temperature(℃)                                       60~65

 Rinse temperature(℃)                                       82~90

Wash cycle(s)                                                    60/90

Diameter of the water inlet hose(in)                      3/4

Diameter of drainpipe(in)                                     1 _1/4

Incoming water  pressure(Kg/cm²)                       0.3-5

Incoming water  hardness(g/l)                             0.034-0.103
