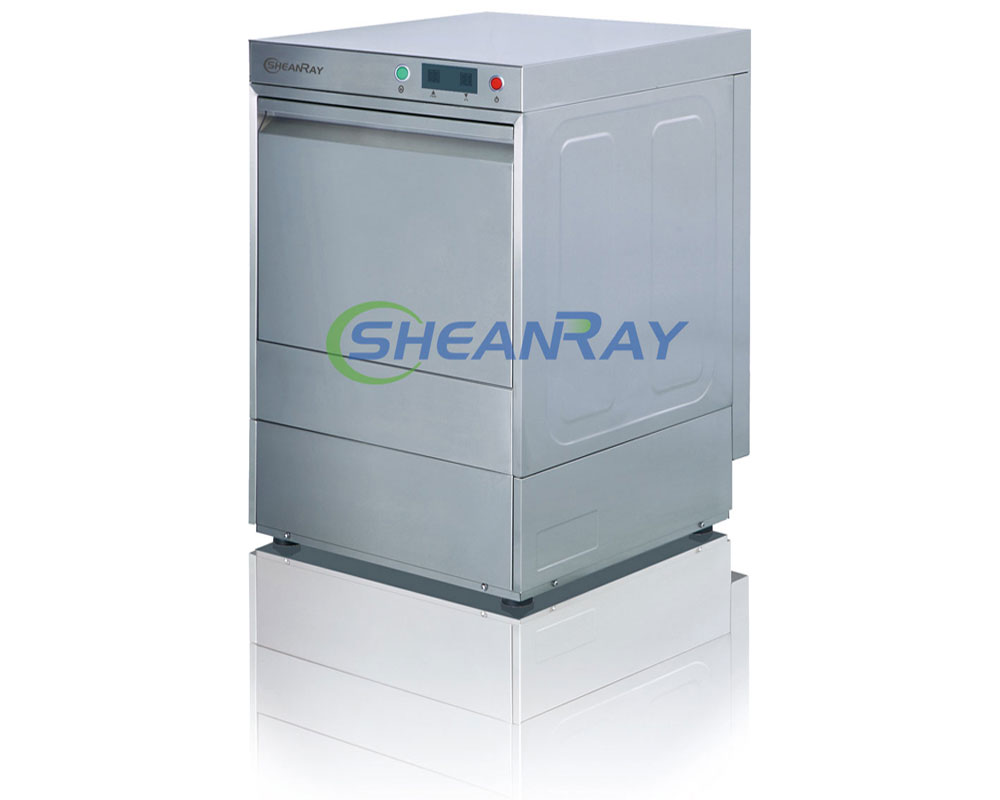

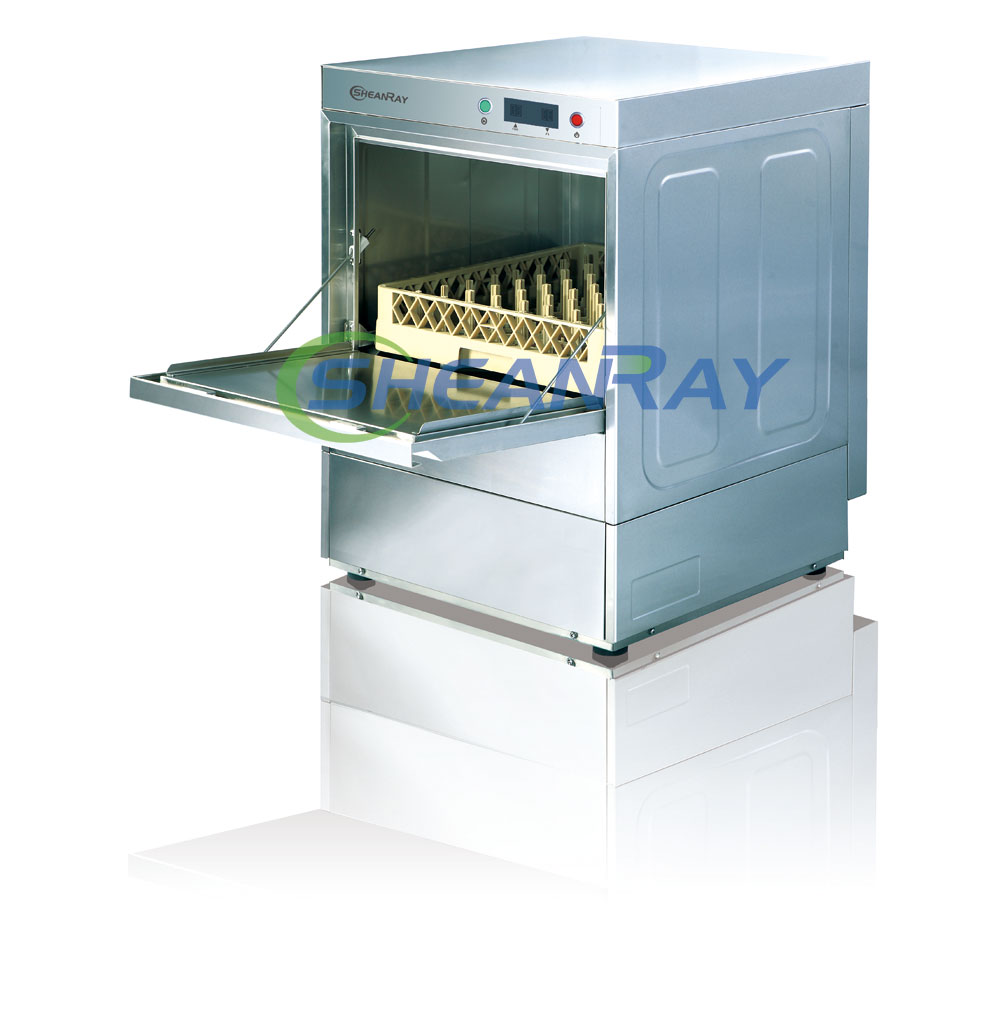

U40

Characteristics and Advantages

Mechanical button design makes the operation simple.

Highlighted LED temperature display makes it clear at a glance.

Effective temperature control and rinse temperature limit program design ensures that each rinse temperature reaches above 82 ℃.

Unique inward curving nozzle design forms strong fan-shaped spray to ensure the washing effect.

Compact structure design saves space.

Double skin door design saves energy and reduces noise to make more comfortable operating environment.

Installation and  Connection Requirements

Power Requirements: 220V/50Hz/1Ph+Neutral + Ground or 380V/50Hz/3Ph+Neutral + Ground with a separate external air circuit breaker.

The machine can be directly connected to water supply system, the lowest incoming water pressure should be 2Kg/cm².

Ideal for

Small restaurants, coffee shops, bars and other catering industries.

Parameters

Item/model                                                           U40

Power Requirements                            220V/50Hz/1P      380V/50Hz/3P

Incoming water  temperature(℃)          10-60                  10-60

Tank heater(Kw)                                 2                        2

 Booster heater(Kw)                            2.5                     7.5

Wash pump (Kw)                                0.38                   0.38

Total connected load(Kw)                    3.1                     8.1

Total amps required(A)                        15                      13

Cross section  of cable (mm2)               4                        4

Rated current of air circuit breaker（A）  25                     25

Heating                                                             Electricity

External dimension(mm)                                    576×600×796

Max clear entry height(mm)                               315

Passing width (mm)                                          508

Max capacity（rack/hour）                                 40

Water consumption(liter/rack)                            2.6

Wash tank capacity(liter)                                   23

Booster capacity(liter)                                       5.5

Wash temperature(℃)                                      55~60

Rinse temperature(℃)                                       82~90

Wash cycle(s)                                                  90/277

Diameter of the water inlet hose(in)                    3/4

Diameter of drainpipe(in)                                   1 1/4

Incoming water pressure(Kg/cm²)                      0.5~6

Incoming water hardness(g/l)                             0.034-0.103
